GKTech - V2 S14 240SX /S15 SILVIA/R33/R34 SKYLINE SUBFRAME WELD IN REINFORCEMENT PLATES
GKTech - V2 S14 240SX /S15 SILVIA/R33/R34 SKYLINE SUBFRAME WELD IN REINFORCEMENT PLATES
Regular price
$109.00 USD
Regular price
Sale price
$109.00 USD
Quantity
Couldn't load pickup availability

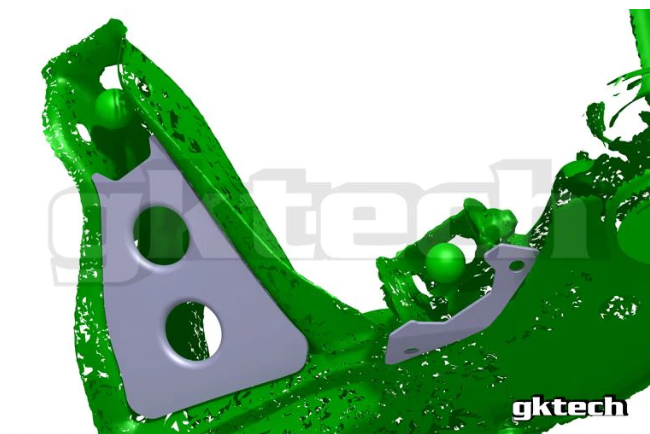

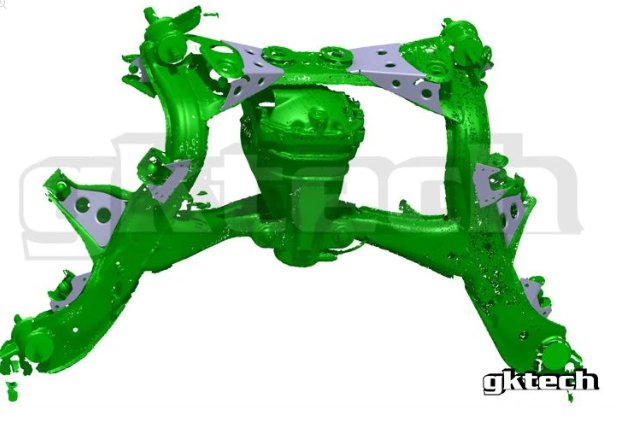

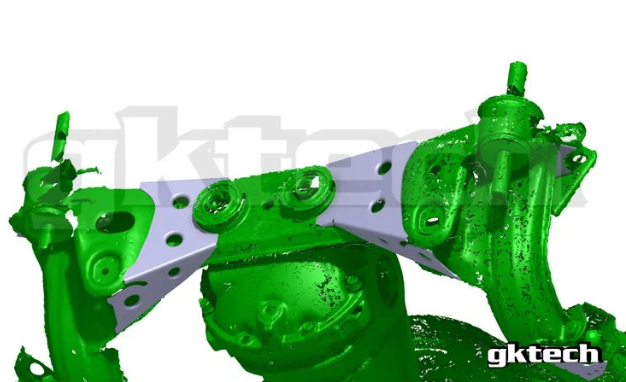

The GKTECH V2 S14/S15/R33/R34 subframe weld in reinforcement plates have been designed from a 3D scan with the addition of CMM data to help to reinforce your subframe where it needs it most.

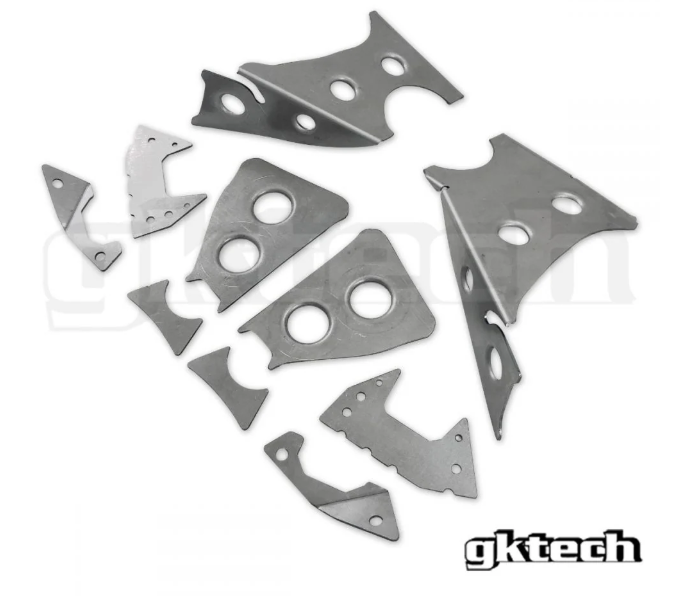

Laser cut, steel and dimple died for strength these plates make reinforcement of the rear subframe a heap easier than attempting to do it yourself. The V2 reinforces the area around the rear diff more and the overall fit is better than our previous V1.
NOTE: Will not work on HICAS subframes. For our HICAS specific version please refer to this listing:
FAQS
Will these fit my car?We can only confirm fitment of the vehicles listed above. If your vehicle isn't listed there then we can't be sure. Sorry
How hard is this kit to install?
It is pretty straight forward however the subframe does need to be out of the car to weld in these plates. You'll also obviously need access to a welder. Gluing these in wouldn't be anywhere near as effective
Are these plates effective?
Yes, absolutely. Broken subframes are pretty common, especially in drift/motorsport applications. Just as people seam weld their cars, the subframe should not be forgotten. Remembering that it takes a heap of the stress under load
VEHICLE COMPATIBILITY
NOTE: Will only fit the S13/R32 fitted with an S14/S15 Rear Subframe.
NISSAN
R32 SKYLINE GTS-TS13 KA24 240SX
S13 KA24 HATCH
S13 SR20 240SX HATCH
S13 SR20 240SX/SILVIA
S14 240SX/SILVIA
S15 240SX/SILVIA
