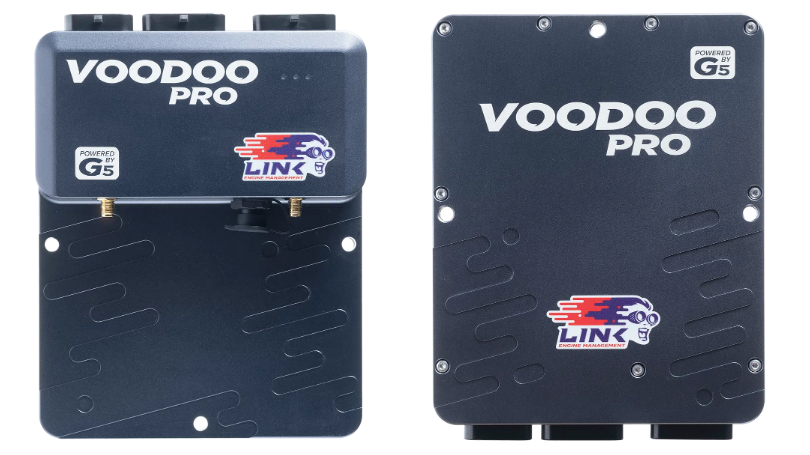

Link G5 Voodoo Pro

New G5 Voodoo Pro

G5 Voodoo Pro puts real magic in your hands and opens a new world of possibilities with the ability to control port plus direct injection, more injector and ignition drives, advanced communications and many more features.

With 12 Injection, 8 Ignition and 4 multi-purpose (inj, ign, aux) drives (24 total) the G5 Voodoo Pro can run up to:

• Twelve cylinders or six rotors with sequential injection and direct spark, or
• Eight cylinders with staged injection and direct spark.

The G5 Voodoo Pro processing unit is the perfect choice for professional level motorsport.

For more information please see the Features and Specifications tab or view our Product

The G5 Voodoo Pro Automotive Computer unit works on a variety of vehicles, please contact a LinkECU Reseller or Technical Support for advice regarding your specific project.

In the box:

• G5 Voodoo Pro ECU
• USB-C Connection Cable
• WiFi Antenna
• 4m GPS Antenna (Magnetic or Adhesive Mount)
• USB-C and SMA Dust Covers
• QuickStart Guide (A5)
• Installer I/O table (A3)
• Link stickers

• Control up to 12 cylinders sequentially with 12 Injection, 8 Ignition and 4 multi-purpose (inj, ign, aux) drives (24 total)

• DI Features, including DI Pump Control (using an external OEM or aftermarket driver box - more info on working with DI here)

• Make use of unused Injector/Ignition pins to give access to up to 30 auxiliary pins

• 14 analogue / 10 digital inputs

• Dual microcontrollers: one controlling the ECU, one controlling comms

• Built-in Global Positioning System (GPS) up to 50Hz, with logging

• Built-in WiFi, with real-time PC Link connection

• Dual lambda sensor control (on-board wideband)

• Dual E-throttle, with custom H-bridge control (Drive by Wire)

• Dual Knock Control

Technical Specs

Outputs

12 Injector drives

8 Ignition drives

4 Multi purpose injector/ignition drives

8 Auxiliary Outputs

4 E-Throttle / H-Bridge Pins

2 Wideband Heater Pins

Unused dedicated pins can be used as generic Aux, totalling 30 available Aux. outputs

Inputs

14 Analog inputs

10 Digital inputs

4 Temperature inputs

2 Knock inputs

2 Trigger inputs

1 Dedicated ignition switch pin

1 5v sensor supply

Communications

USB

Wi-Fi

GPS

CAN 1 via external plug

CAN 2 via header E

Header

Superseal A, B & E plugs.

GPS Antenna

USB-C

CAN 1 / K-Line

Wi-Fi Antenna

Dimensions

Length: 177.1mm (6.97 inches)

Width: 137.3mm (5.40 inches)

Min side height: 15.5mm (0.61 inches)

Max side height: 40.2mm (1.58 inches)

Weight: 795g (28 ounces)
