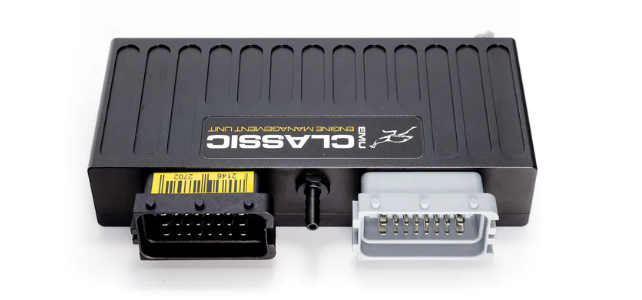

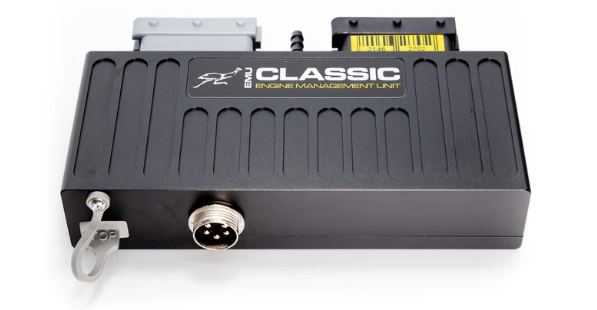

ECUMaster EMU Classic

ECUMASTER EMU TECHNICAL DETAILS

• 6 Fuel injector outputs (5A) (12 injectors in batch fire)
• 6 AUX outputs (5A)
• 6 Ignition outputs -Passive or active coils, software selectable (7A) (supports up to 12 cylinders)
• 4 stepper motor outputs - bipolar/unipolar (1A)
• 2 direct EGT input channels
• 2 knock sensor inputs (supports flat response or resonant sensors)
• Built-in wideband O2 controller for Bosch LSU 4.2
• Built-in 4 bar MAP sensor
• Built-in barometric pressure sensor
• 4 Digital inputs VR/HALL – software selectable
• 3 Dedicated analog inputs (TPS, CLT, IAT)
• 8 Additional analog inputs (0-5V)
• Compliance with ISO 7637
• Supports 1-12 cylinders
• Supports up to two variable cams (VVTi, VANOS, etc.)
• Max RPM 16000
• Injection time resolution 16us
• Ignition advance resolution 0.5 deg
• Knock sensing 1-20 kHz
• Speed Density, Alpha-N algorithm
• 16x20 VE fuel table, resolution to 0.1% VE
• 16x20 Ignition table, resolution to 0.5 deg
• 16x20 Target AFR table, resolution to 0.1 AFR
• Injector voltage compensation
• Coil dwell calibration
• User calibrated IAT, CLT
• PID idle control strategy
• PID Boost Control, advanced strategies: per gear, per speed
• Nitrous control with fuel and ignition modification tables
• Aux outputs for fuel pumps, radiator fans, etc.
• Motorsports features: launch control, gear dependent shift light, flat shift ( gear change cut)
• Logging available for over 100 parameters
• Check engine light output
• Full Flex Fuel capability with map blending (requires ethanol content sensor)
• Advanced features available with additional modules: Drive By Wire throttle, Bluetooth adapter for using an Android device to display gauges
• USB communication, no additional interface needed, uses standard USB cable (included)
• The ECUMaster EMU comes with user friendly software with free firmware upgrades
• 24 month warranty

PC REQUIREMENTS

• Windows 2000, XP, Vista, Windows 7, Windows 8
• Screen resolution of at least 1024x768 16bit
• CPU with a clock of at least 600MHz
• USB port

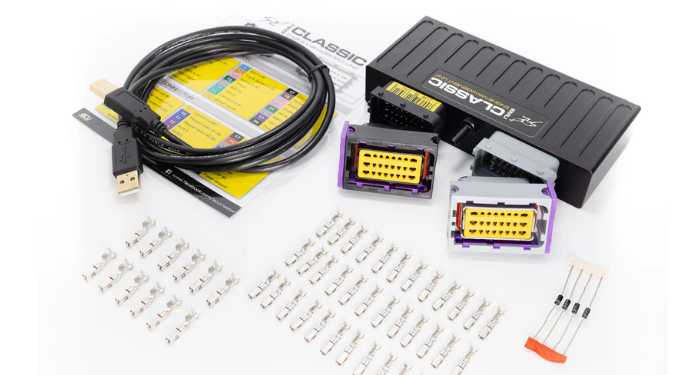

WHAT'S IN THE BOX

• ECUMASTER EMU CLASSIC computer
• USB cable
• ECU Connectors
• Terminals for ECU Connectors
• Download instructions for drivers and manuals
• Laminated pinout of terminals on the ECUMaster EMU
